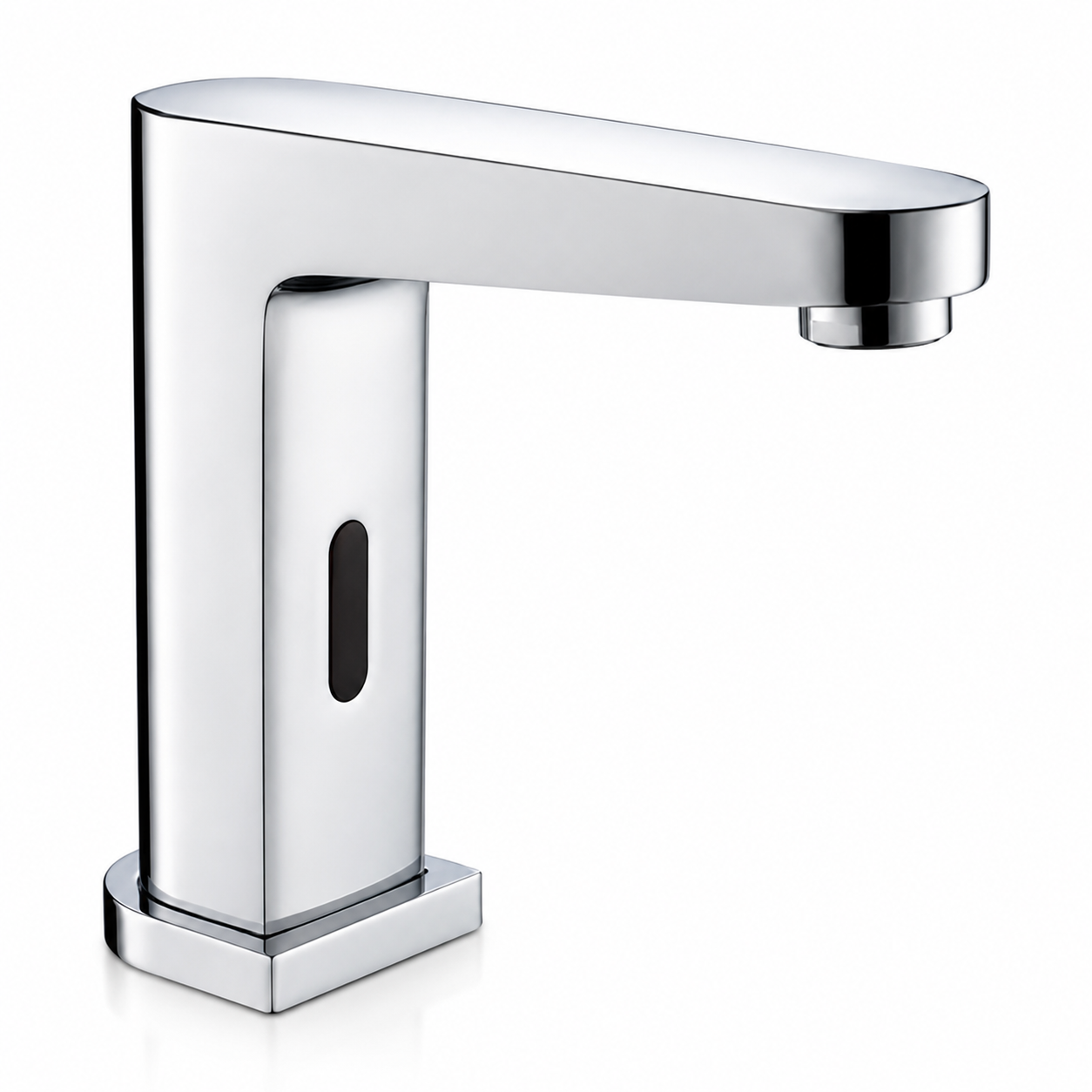

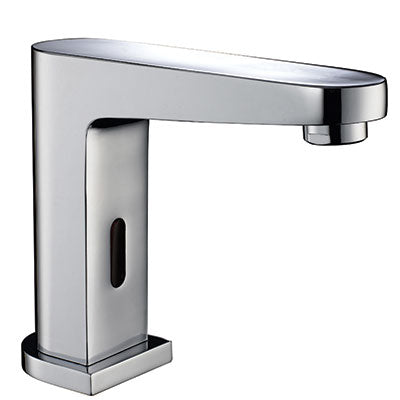

The ATS-0042 automatic sensor tap features a modern flat-top pillar design combined with reliable touchless infrared activation, making it ideal for bathrooms, offices, restaurants, hotels, and commercial washrooms.

Manufactured from solid brass with a chrome-plated finish, this deck-mounted sensor tap offers durable long-term performance while helping reduce water usage and improve hygiene.

The system supports both mains and battery operation. When connected to mains power, the battery supply remains on standby and automatically operates as backup during power interruption.

Designed for single water supply installations, the ATS-0042 can also be paired with a manual blending valve or thermostatic mixing valve where hot and cold water regulation is required.

KEY FEATURES

• Flat-top pillar sensor tap
• Infrared touchless activation
• Commercial-grade brass construction
• Chrome-plated finish
• Battery & mains powered
• Flexible supply hose included
• Water-saving operation
• Deck-mounted installation
• Suitable for residential & commercial use

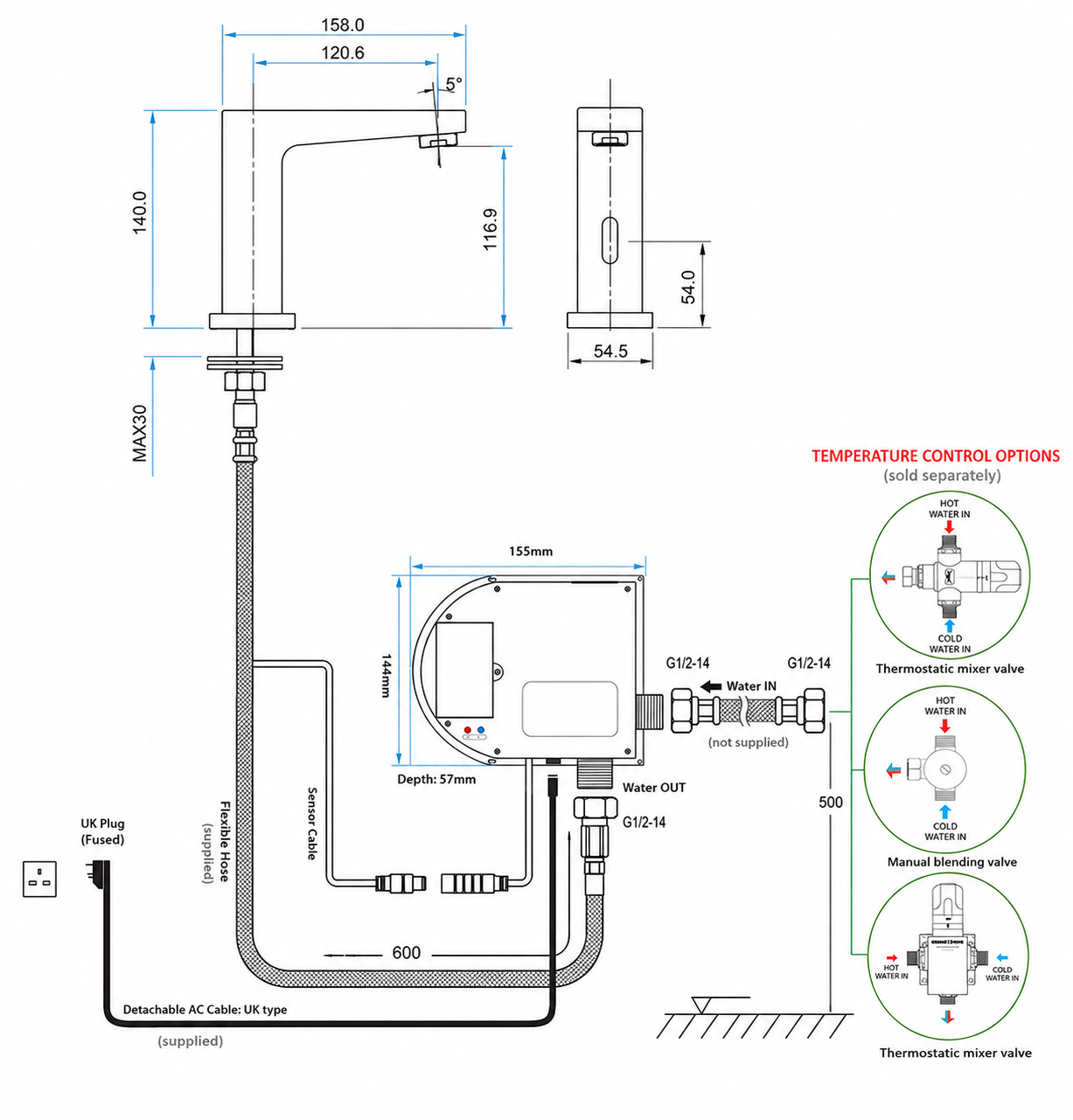

TECHNICAL SPECIFICATIONS

PACKAGE CONTENTS

• 1 × Sensor Tap
• 1 × Flexible Hose
• 1 × Control Box
• 1 × AC Cable (UK Plug)
• 1 × Transformer (Built Inside Control Box)
• 1 × Wall Mounting Clip
• Installation Fittings & Screws

IMPORTANT NOTES

Temperature Control

This tap is designed for cold or pre-mixed water supply.

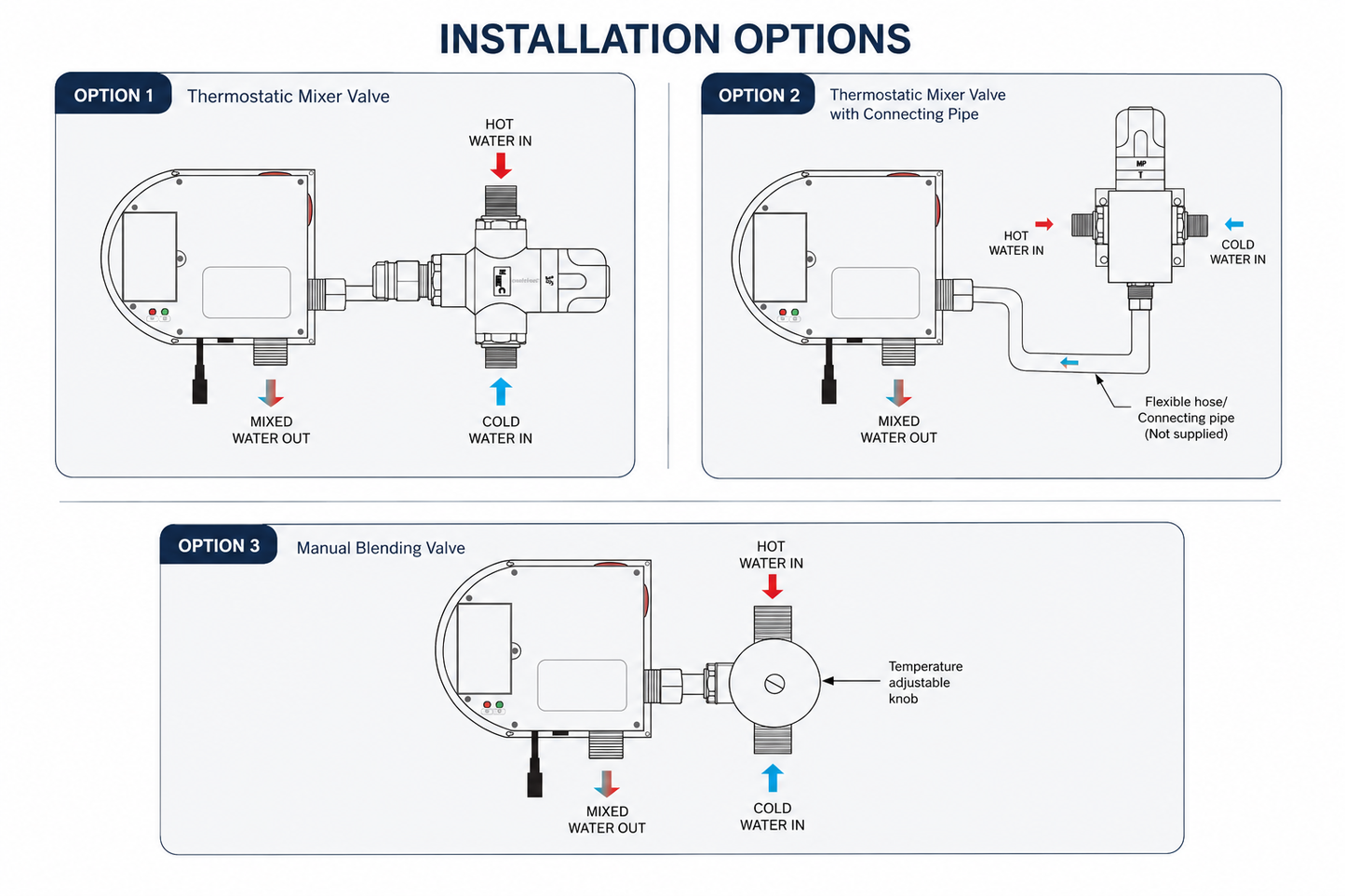

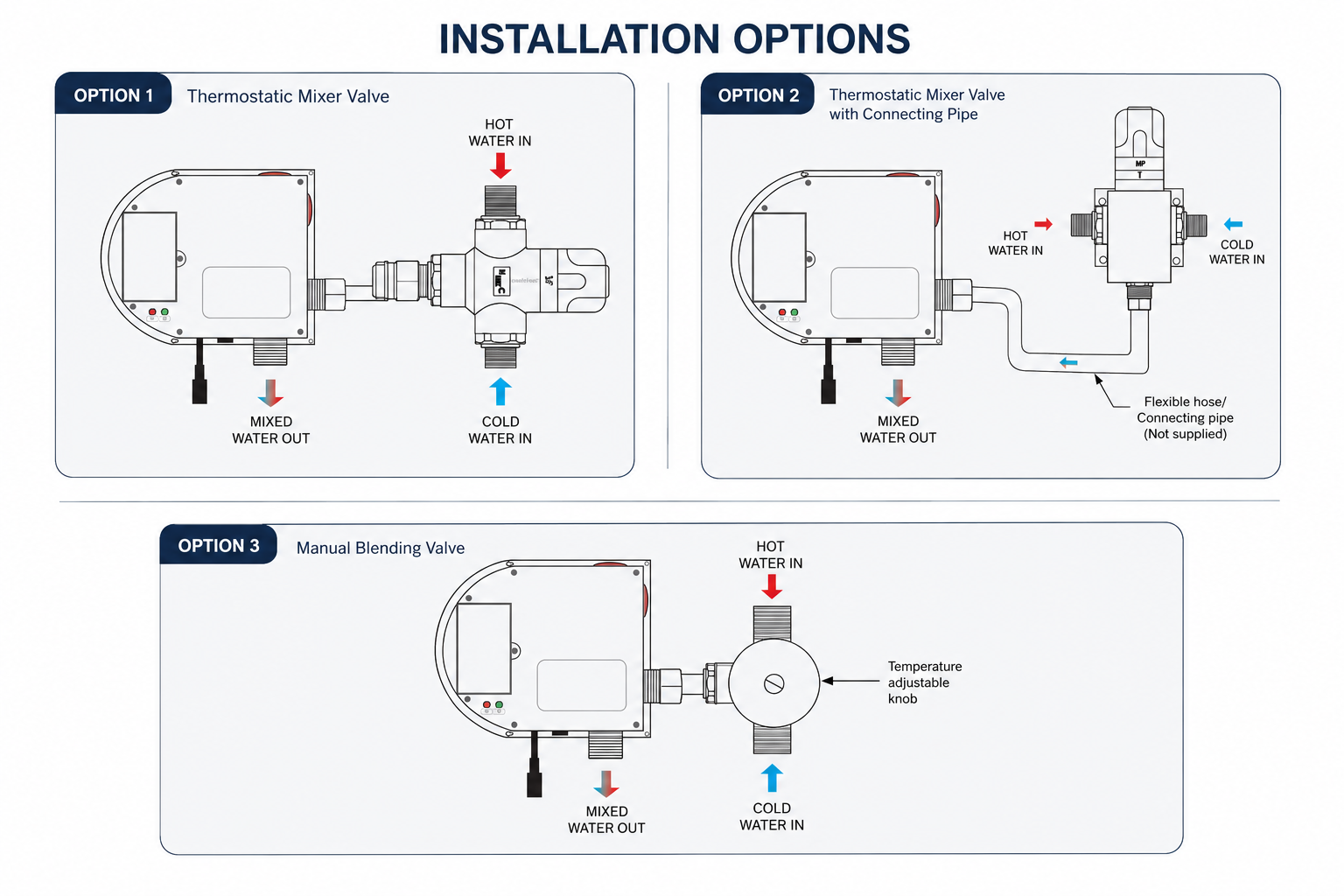

For hot and cold mixing, compatible valves include:

• ABV1-12F – Manual Blending Valve
• ATV1-12F – Thermostatic Mixing Valve

POWER OPTIONS

DC (Battery Powered)

Operates using 4 × AA alkaline batteries.

AC (Mains Powered)

Runs directly from mains electricity using supplied transformer and UK plug.

AC + DC Backup Mode

When both power sources are connected, mains power operates the tap while batteries remain inactive as automatic backup power.
