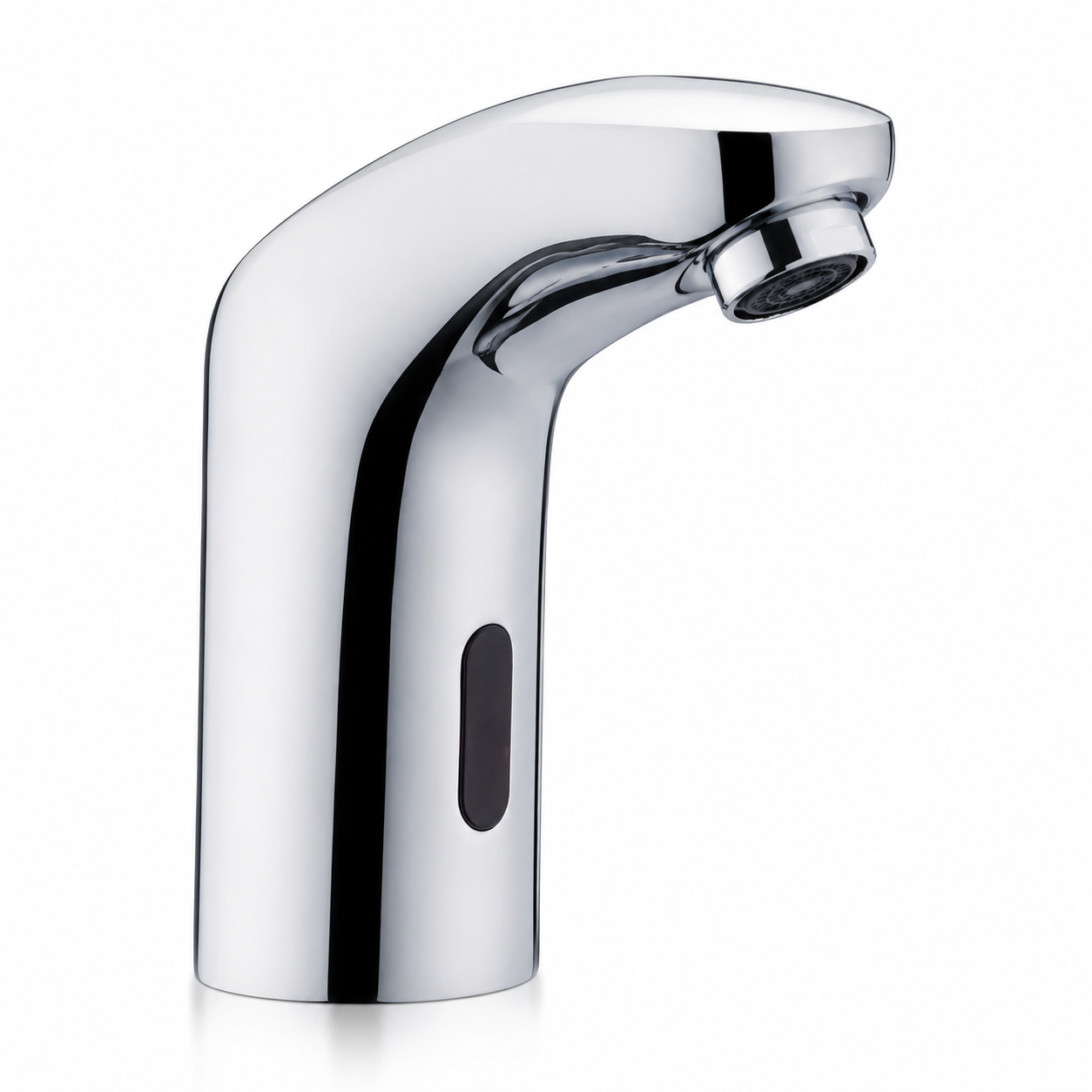

The ATS-0019 automatic sensor tap combines hygienic touchless operation with a sleek modern curve-neck design, making it ideal for bathrooms, commercial washrooms, offices, restaurants, and public facilities.

Manufactured from solid brass with a chrome-plated finish, this deck-mounted sensor tap provides reliable long-term performance and water-saving functionality.

The system supports both mains and battery power operation. When connected to mains power, the battery system remains on standby and automatically functions as backup in the event of power interruption.

Designed for pre-mixed or cold water supply installations, the ATS-0019 can also be paired with a manual blending valve or thermostatic mixing valve where hot and cold water regulation is required.

KEY FEATURES

• Curve-neck sensor tap design
• Infrared touchless activation
• Commercial-grade brass construction
• Chrome-plated finish
• Battery & mains powered
• Water-saving operation
• Flexible hose included
• Deck-mounted installation
• Suitable for residential & commercial use

TECHNICAL SPECIFICATIONS

PACKAGE CONTENTS

• 1 × Sensor Tap
• 1 × Flexible Hose
• 1 × Control Box
• 1 × AC Cable (UK Plug)
• 1 × Transformer
• 1 × Wall Mounting Clip
• Installation Fittings & Screws

IMPORTANT NOTES

Temperature Control

This tap is designed for cold or pre-mixed water supply.

For hot and cold mixing, compatible valves include:

• ABV1-12F – Manual Blending Valve
• ATV1-12F – Thermostatic Mixing Valve

POWER OPTIONS

DC (Battery Powered)

Operates using 4 × AA alkaline batteries.

AC (Mains Powered)

Runs directly from mains supply using included transformer and UK plug.

AC + DC Backup Mode

When both power sources are connected, mains power operates the tap while batteries remain inactive as automatic backup power.
